Worm Gear Sets A33

Worm Gear Set A33
Schneckenradsatz A33

mm to inch converter

Legende
i = gear ratio da1 = tip diameter (worm) T2 = output torque
γm = Lead angle z2 = No. of teeth MF = mineral grease
mn = module dm2 = pitch diameter (worm gear) MÖ = mineral oil / synthetic grease
z1 = number of threads dA = max. diameter (worm gear) SÖ = synthetic oil
dm1 = pitch diameter (worm)
Axial distance 33 mm i Lead angle m Worm Worm gear T2 [Nm]
Bronze

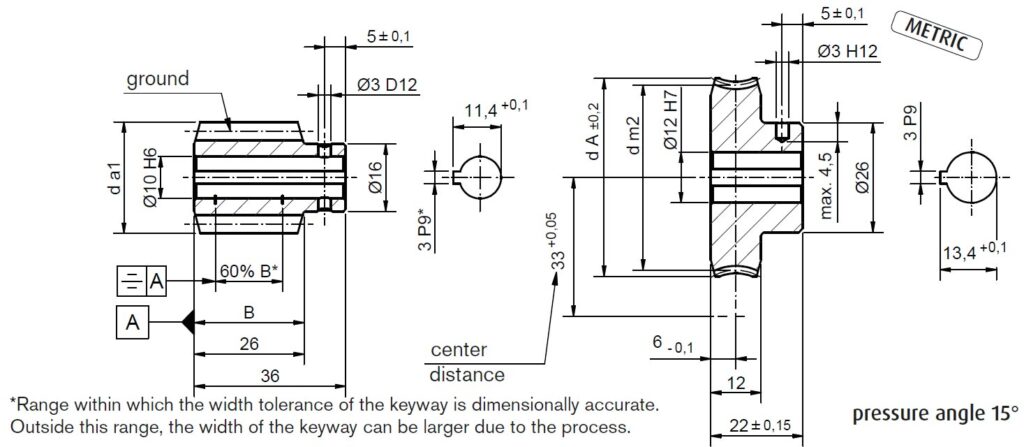

CAD-Data z1 dm1 da1 z2 dm2 dA MF
A33U3 3.5:1 25°57′ 1.75 6 24 27.5 21 42 47 10.1 12.1 15.1
A33U5 5:1 20°50′ 2 4 22.5 26.5 20 43.5 49 10.6 12.7 15.9
A33U7 7:1 15°32′ 1.5 4 22.4 25.4 28 43.6 48 12.2 14.6 18.3
A33U10 10:1 13°10′ 1.5 3 19.75 22.75 30 46.25 51 13.3 16 19.9
A33U11 11.33:1 10°42′ 1.3 3 21 23.6 34 45 49.2 13.3 16 19.9
A33U12 12:1 11°14′ 1.9 2 19.5 23.3 24 46.5 52 13.5 16.2 20.2
A33U14 14:1 7°20′ 1.5 2 23.5 26.5 28 42.5 47 11.4 13.7 17.1
A33U15 15:1 8°25′ 1.5 2 20.5 23.5 30 45.5 50 13 15.6 19.5
A33U16 16:1 10°1′ 1.5 2 17.24 20.24 32 48.76 53 14 16.8 21
A33U17 17:1 9°3′ 1.4 2 17.8 20.6 34 48.2 52.5 14.2 17 21.3
A33U18 18:1 6°57′ 1.25 2 20.65 23.15 36 45.35 49.2 12.6 15.1 18.9
A33U20 20:1 6°43′ 1.15 2 19.66 21.96 40 46.34 50.5 12.7 15.2 19
A33U24 24:1 5°27′ 1.9 1 20 23.8 24 46 51 13.2 15.8 19.8
A33U28 28:1 3°36′ 1.5 1 23.9 26.9 28 42.1 46.6 11.2 13.4 16.8
A33U30 30:1 4°8′ 1.5 1 20.85 23.85 30 45.15 50 12.7 15.2 19
A33U32 32:1 4°50′ 1.5 1 17.8 20.8 32 48.2 52.5 13.5 16.2 20.2
A33U38 38:1 3°55′ 1.25 1 18.26 20.76 38 47.74 51.6 13.9 16.7 20.8
A33U50 50:1 2°27′ 0.9 1 21 22.8 50 45 48 10 12 15
A33U56 56:1 2°10′ 0.8 1 21.15 22.75 56 44.85 48 10.1 12.1 15.1
A33U60 60:1 2°33′ 0.8 1 17.96 19.56 60 48.04 51.5 11.4 13.7 17.1
A33U72 72:1 1°30′ 0.6 1 22.8 24 72 43.2 46 8.4 10.1 12.6
A33U75 75:1 1°41′ 0.6 1 20.5 21.7 75 45.5 48 9 10.8 13.5

Steel, right-hand threaded worm, case hardened HV 620 – 700.
Worm gear made of CuZn37Mn3Al2PbSi or plastic or laminate 2083 upon request.

The output torque rating (T2) applies to the initial speed of 2800 rpm at the worm (shaft).
The efficiency values (see table in worm gear set catalog) are guidelines. The bearing, lubrication, speed, and installation, in addition to the lead angle, can influence efficiency.

Gears may be combined only with worms of the same axial distance and with the same transmission ratio.
Worms or worm gears from other manufacturers may not be paired with the counterpiece from Framo Morat. It is almost always necessary to adjust the toothing specifications.
All dimensions can be adapted upon request.

Is your desired gear set not available? Request your gear set!
Moderate quantities are usually available from stock, larger quantities are delivered in partial quantities or upon request.
