Planetary Gears GSD

Planetary gear GSD, 1- & 2-stage

Its short design makes the GSD line the ideal high-end gearbox for space restricted applications. The output flange for robotics produces highest torsional rigidity. The low standard backlash of the GSD line makes it the perfect fit for highly dynamic applications where highest positioning and speed accuracy is required. The GSD line is equipped with maximum preloaded deep groove ball bearings by standard – optionally, it is also available with taper roller bearings to accommodate higher radial and axial forces.

Definition of serial numbers

Internal
Group No.
Type Size Bearing Backlash level Input hollow shaft [mm] Ratio
3 GSD 047 1 11 100
3 GSD 090 T 0 19 005

Bearing: with T = Tapered bearing; without T = Ball bearing
Backlash level: 1 = Standard; 0 = Reduced backlash
Input hollow shaft diam. = Max. motorshaft diam. = D9 in gearbox dimensions

Dimensions

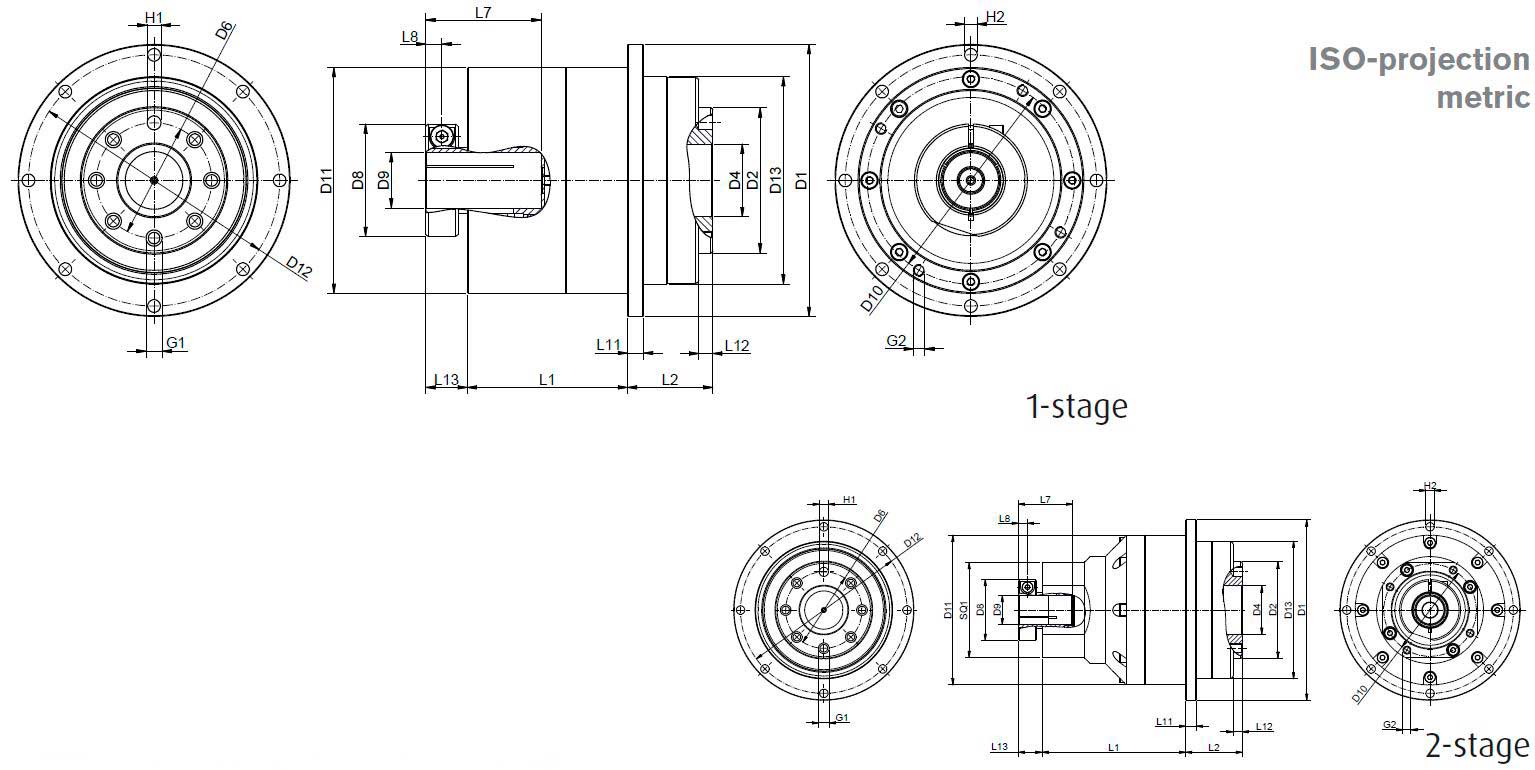

GSD-EN-dimensions

mm to inch converter

Gearbox characteristics Stage GSD047 GSD064 GSD090 GSD110 GSD140
Housing diameter D1 72 86 118 146 179
Outer centering diameter output D2 h7 28 40 63 80 100
Inner centering diameter output D4 H7 12 20 31.5 40 50
Hole circle diameter output D6 20 31.5 50 63 80
Clamping system diameter D8 1 27 40 49 67 80
2 27 29 40 49 67
Input hollow shaft diameter D9 F7 1 11 19 24 28 38
2 11 14 19 24 35
Hole circle diameter input D10 1 42 60.5 90 120 143
2 42 42 60.5 90 120
Housing diameter input D11 h7 59 70 98 125 156
Hole circle diameter (2) output D12 67 79 109 135 168
Output flange diameter D13 h7 47 64 90 110 140
Housing length L1 1 33.5 46.5 69.5 80.5 103
2 61.5 68.5 94 125.5 161
Shaft length output L2 23.5 24.5 37 37 40
Max. input length motor shaft L7 1 27 28 49.5 57 100
2 21 25.5 27.5 50 57
Distance to center of screw L8 1 4.5 6 7 9 10.5
2 4.5 5 6 7 9
Flange thickness output L11 4 5 7 8 10
Flange length output L12 1.5 4 6 6 6
Distance clamping device – housing L13 1 10 15.5 18 25.5 25.5
2 10 11.5 15.5 18 25.5
Square housing SQ1 44 44 62 90 120
Min. mounting thread x depth G1 4 x M3 x 6.5 7 x M5 x 8 7 x M6 x 12 11 x M6 x 12 11 x M8 x 16
Min. mounting thread x depth G2 1 M4 x 8 M5 x 10 M5 x 10 M8 x 16 M8 x 16
2 M4 x 8 M4 x 8 M5 x 10 M6 x 12 M8 x 16
Hole bore H1 H7 3 x 4 5 x 6 6 x 6 6 x 7 8 x 8
Hole bore H2 8 x 3.4 8 x 4.5 8 x 5.5 8 x 5.5 12 x 6.6

Find additional info to motor flanges and reduction sleeves below.

Power table

Gearbox characteristics GSD047 GSD064 GSD090 GSD110 GSD140 Stage
Service lifetime*1 tL h 30000
Nominal input speed n1 rpm 5000 4500 4500 4000 3500
Max. input speed n1 max. rpm 10000 10000 8000 8000 6500
Standard backlash jt arcmin <= 3 (opt. <=1) 1
<= 5 (opt. <=3) 2
Noise level*2 Qg dB (A) <= 56 <= 58 <= 60 <= 63 <= 65
Efficiency ƞ % >= 97 1
>= 94 2
Protection class IP65
Torsional rigidity ct Nm/arcmin 6 14 30 86 155
Max. radial force (ball bearing)*3 F2r N 1530 1890 6345 9540 10550
Max. axial force (ball bearing)*3 F2a N 1020 1260 4230 6360 7035
Max. radial force (tapered bearing)*3 F2r N 6345 9540 10550
Max. axial force (tapered bearing)*3 F2a N 7330 11500 18600
Operating temperature TB °C -25°C – +90°C
Lubrication Synthetic grease (lifetime-lubricated)
Weight with flange*4 mg kg 0.7 1.4 4.2 7.4 13.9 1
1 1.9 4.8 9.4 16.7 2
Mounting position Any
Output torques GSD047 GSD064 GSD090 GSD110 GSD140 Ratio Stage
Nominal output torque*5 T2N Nm 23 63 168 352 683 4 1
21 53 163 350 649 5 1
20 49 149 324 602 7 1
17 45 143 309 576 10 1
23 63 168 352 683 20 2
21 53 163 350 649 25 2
20 49 149 324 602 35 2
23 63 168 352 683 40 2
21 53 163 350 649 50 2
20 49 149 324 602 70 2
17 45 143 309 576 100 2
Max. acceleration torque*6 T2B Nm 41 113 302 634 1229 4 1
38 95 293 630 1168 5 1
36 89 268 583 1084 7 1
31 81 257 556 1037 10 1
41 113 302 634 1229 20 2
38 95 293 630 1168 25 2
36 88 268 583 1084 35 2
41 113 302 634 1229 40 2
38 95 293 630 1168 50 2
36 88 268 583 1084 70 2
31 81 257 556 1037 100 2
Emergency stop torque*7 T2Not Nm 69 189 504 1056 2049 4 1
63 159 489 1050 1947 5 1
60 148 447 972 1806 7 1
51 135 429 927 1728 10 1
69 189 504 1056 2049 20 2
63 159 489 1050 1947 25 2
60 147 447 972 1806 35 2
69 189 504 1056 2049 40 2
63 158 489 1050 1947 50 2
60 147 447 972 1806 70 2
51 135 429 927 1728 100 2
Mass moment of inertia GSD047 GSD064 GSD090 GSD110 GSD140 Ratio Stage
Mass moment of inertia*8 J1 kgcm2 0.03 0.13 0.47 2.75 7.46 4 1
0.03 0.12 0.45 2.7 7.41 5 1
0.03 0.12 0.45 2.64 7.12 7 1
0.03 0.12 0.43 2.56 7.01 10 1
0.03 0.03 0.15 0.45 2.7 20 2
0.03 0.03 0.15 0.45 2.7 25 2
0.03 0.03 0.15 0.45 2.7 35 2
0.03 0.03 0.15 0.45 2.7 40 2
0.03 0.03 0.14 0.4 2.6 50 2
0.03 0.03 0.14 0.4 2.6 70 2
0.03 0.03 0.14 0.4 2.6 100 2

*1 Load factor KA=1, n2=100 rpm ,at room temperature T=20°C in new condition
*2 Sound pressure level at 1 m distance, measured for an input speed of 3000 rpm without load
*3 On the center of the output shaft
*4 Deviation of up to 10 % possible
*5 Service life: 30,000 h, n2=100 rpm
*6 Max 1000 cycles per hour. Acceleration torque proportion < 5% of the total operation time
*7 Max 1000 cycles over the gear service life
*8 Related to the input shaft

metric

Gearbox characteristics metric GSD047 GSD064 GSD090 GSD110 GSD140 Stage
Service lifetime*1 tL h 30000
Nominal input speed n1 rpm 5000 4500 4500 4000 3500
Max. input speed n1 max. rpm 10000 10000 8000 8000 6500
Standard backlash jt arcmin <= 3 (opt. <=1) 1
<= 5 (opt. <=3) 2
Noise level*2 Qg dB (A) <= 56 <= 58 <= 60 <= 63 <= 65
Efficiency ƞ % >= 97 1
>= 94 2
Protection class IP65
Torsional rigidity ct Nm/arcmin 6 14 30 86 155
Max. radial force (ball bearing)*3 F2r N 1530 1890 6345 9540 10550
Max. axial force (ball bearing)*3 F2a N 1020 1260 4230 6360 7035
Max. radial force (tapered bearing)*3 F2r N 6345 9540 10550
Max. axial force (tapered bearing)*3 F2a N 7330 11500 18600
Operating temperature TB °C -25°C – +90°C
Lubrication Synthetic grease (lifetime-lubricated)
Weight with flange*4 mg kg 0.7 1.4 4.2 7.4 13.9 1
1 1.9 4.8 9.4 16.7 2
Mounting position Any
Output torques GSD047 GSD064 GSD090 GSD110 GSD140 Ratio Stage
Nominal output torque*5 T2N Nm 23 63 168 352 683 4 1
21 53 163 350 649 5 1
20 49 149 324 602 7 1
17 45 143 309 576 10 1
23 63 168 352 683 20 2
21 53 163 350 649 25 2
20 49 149 324 602 35 2
23 63 168 352 683 40 2
21 53 163 350 649 50 2
20 49 149 324 602 70 2
17 45 143 309 576 100 2
Max. acceleration torque*6 T2B Nm 42 113 302 633 1229 4 1
38 95 293 629 1168 5 1
36 89 268 584 1083 7 1
30 81 257 556 1038 10 1
42 113 302 633 1229 20 2
38 95 293 629 1168 25 2
36 89 268 584 1083 35 2
42 113 302 633 1229 40 2
38 95 293 629 1168 50 2
36 89 268 584 1083 70 2
30 81 257 556 1038 100 2
Emergency stop torque*7 T2Not Nm 69 189 504 1055 2048 4 1
63 158 488 1049 1947 5 1
60 148 447 973 1805 7 1
50 135 428 926 1729 10 1
69 189 504 1055 2048 20 2
63 158 488 1049 1947 25 2
60 148 447 973 1805 35 2
69 189 504 1055 2048 40 2
63 158 488 1049 1947 50 2
60 148 447 973 1805 70 2
50 135 428 926 1729 100 2
Mass moment of inertia GSD047 GSD064 GSD090 GSD110 GSD140 Ratio Stage
Mass moment of inertia*8 J1 kgcm2 0.03 0.13 0.47 2.75 7.46 4 1
0.03 0.12 0.45 2.7 7.41 5 1
0.03 0.12 0.45 2.64 7.12 7 1
0.03 0.12 0.43 2.56 7.01 10 1
0.03 0.03 0.15 0.45 2.7 20 2
0.03 0.03 0.15 0.45 2.7 25 2
0.03 0.03 0.15 0.45 2.7 35 2
0.03 0.03 0.15 0.45 2.7 40 2
0.03 0.03 0.14 0.4 2.6 50 2
0.03 0.03 0.14 0.4 2.6 70 2
0.03 0.03 0.14 0.4 2.6 100 2

*1 Load factor KA=1, n2=100 rpm ,at room temperature T=20°C in new condition
*2 Sound pressure level at 1 m distance, measured for an input speed of 3000 rpm without load
*3 On the center of the output shaft
*4 Deviation of up to 10 % possible
*5 Service life: 30,000 h, n2=100 rpm
*6 Max 1000 cycles per hour. Acceleration torque proportion < 5% of the total operation time
*7 Max 1000 cycles over the gear service life
*8 Related to the input shaft

imperial

Gearbox characteristics imperial GSD047 GSD064 GSD090 GSD110 GSD140 Stage
Service lifetime*1 tL h 30000
Nominal input speed n1 rpm 5000 4500 4500 4000 3500
Max. input speed n1 max. rpm 10000 10000 8000 8000 6500
Standard backlash jt arcmin <= 3 (opt. <=1) 1
<= 5 (opt. <=3) 2
Noise level*2 Qg dB (A) <= 56 <= 58 <= 60 <= 63 <= 65
Efficiency ƞ % >= 97 1
>= 94 2
Protection class IP65
Torsional rigidity ct lbf ft / arcmin 4.426 10.326 22.128 63.434 114.328
Max. radial force (ball bearing)*3 F2r lbf 344 425 1426 2145 2372
Max. axial force (ball bearing)*3 F2a lbf 229 283 951 1430 1581
Max. radial force (tapered bearing)*3 F2r lbf 1426 2145 2372
Max. axial force (tapered bearing)*3 F2a lbf 1648 2585 4181
Operating temperature TB °F -13°F – +194°F
Lubrication Synthetic grease (lifetime-lubricated)
Weight with flange*4 mg lb 1.54 3.09 9.26 16.31 30.64 1
2.20 4.19 10.58 20.72 36.82 2
Mounting position Any
Output torques GSD047 GSD064 GSD090 GSD110 GSD140 Ratio Stage
Nominal output torque*5 T2N lbf ft 17 46 124 260 504 4 1
15 39 120 258 479 5 1
15 36 110 239 444 7 1
13 33 105 228 425 10 1
17 46 124 260 504 20 2
15 39 120 258 479 25 2
15 36 110 239 444 35 2
17 46 124 260 504 40 2
15 39 120 258 479 50 2
15 36 110 239 444 70 2
13 33 105 228 425 100 2
Max. acceleration torque*6 T2B lbf ft 31 83 223 467 907 4 1
28 70 216 464 862 5 1
27 66 198 431 799 7 1
22 60 190 410 766 10 1
31 83 223 467 907 20 2
28 70 216 464 862 25 2
27 66 198 431 799 35 2
31 83 223 467 907 40 2
28 70 216 464 862 50 2
27 66 198 431 799 70 2
22 60 190 410 766 100 2
Emergency stop torque*7 T2Not lbf ft 51 139 372 778 1511 4 1
46 117 360 774 1436 5 1
44 109 330 718 1331 7 1
37 100 316 683 1275 10 1
51 139 372 778 1511 20 2
46 117 360 774 1436 25 2
44 109 330 718 1331 35 2
51 139 372 778 1511 40 2
46 117 360 774 1436 50 2
44 109 330 718 1331 70 2
37 100 316 683 1275 100 2
Mass moment of inertia GSD047 GSD064 GSD090 GSD110 GSD140 Ratio Stage
Mass moment of inertia*8 J1 oz in2 0.16 0.71 2.57 15.04 40.79 4 1
0.16 0.66 2.46 14.76 40.51 5 1
0.16 0.66 2.46 14.43 38.93 7 1
0.16 0.66 2.35 14.00 38.33 10 1
0.16 0.16 0.82 2.46 14.76 20 2
0.16 0.16 0.82 2.46 14.76 25 2
0.16 0.16 0.82 2.46 14.76 35 2
0.16 0.16 0.82 2.46 14.76 40 2
0.16 0.16 0.77 2.19 14.22 50 2
0.16 0.16 0.77 2.19 14.22 70 2
0.16 0.16 0.77 2.19 14.22 100 2

*1 Load factor KA=1, n2=100 rpm ,at room temperature T=68°F in new condition
*2 Sound pressure level at 1 m distance, measured for an input speed of 3000 rpm without load
*3 On the center of the output shaft
*4 Deviation of up to 10 % possible
*5 Service life: 30,000 h, n2=100 rpm
*6 Max 1000 cycles per hour. Acceleration torque proportion < 5% of the total operation time
*7 Max 1000 cycles over the gear service life
*8 Related to the input shaft

Motorflanges

Motor flange
Motor flange dimensions
  1. GSD 47
    Gearbox type Centering diameter [mm] Hole circle [mm] Max. centering depth [mm] Max. motor shaft length [mm] Screw type Article number
    GSD47 30 46 4 25 M4 3-G044-030-001
    40 63 4 25 M4 3-G044-040-002
    50 70 3 25 M5 3-G044-050-002
    50 70 3 30 M4 3-G044-050-004
    60 75 4 25 M5 3-G044-060-001
  2. GSD 64
    Gearbox type Centering diameter [mm] Hole circle [mm] Max. centering depth [mm] Max. motor shaft length [mm] Screw type Article number
    GSD64 1st 30 46 5 30 M4 3-G062-030-001
    50 70 5 30 M5 3-G062-050-001
    50 70 5 30 M4 3-G062-050-002
    50 95 5 30 M6 3-G062-050-004
    60 75 5 30 M6 3-G062-060-001
    60 75 5 30 M5 3-G062-060-002
    70 90 5 40 M6 3-G062-070-102
    70 90 5 30 M5 3-G062-070-003
    80 100 5 30 M6 3-G062-080-001
    GSD64 2st. 30 46 4 25 M4 3-G044-030-001
    40 63 4 25 M4 3-G044-040-002
    50 70 3 25 M5 3-G044-050-002
    50 70 3 30 M4 3-G044-050-004
    60 75 4 25 M5 3-G044-060-001
  3. GSD 90
    Gearbox type Centering diameter [mm] Hole circle [mm] Max. centering depth [mm] Max. motor shaft length [mm] Screw type Article number
    GSD090 1st. 70 90 8 50 M6 3-G090-070-001
    70 90 8 50 M5 3-G090-070-002
    80 100 8 50 M6 3-G090-080-001
    95 115 8 50 M8 3-G090-095-002
    95 130 8 50 M8 3-G090-095-003
    95 115 13 55 M8 3-G090-095-006
    110 145 8 50 M8 3-G090-110-001
    110 145 22 65 M8 3-G090-110-002
    110 130 8 50 M8 3-G090-110-003
    130 165 8 50 M10 3-G090-130-001
    GSD090 2st. 30 46 5 30 M4 3-G062-030-001
    50 70 5 30 M5 3-G062-050-001
    50 70 5 30 M4 3-G062-050-002
    50 95 5 30 M6 3-G062-050-004
    60 75 5 30 M6 3-G062-060-001
    60 75 5 30 M5 3-G062-060-002
    70 90 5 40 M6 3-G062-070-102
    70 90 5 30 M5 3-G062-070-003
    80 100 5 30 M6 3-G062-080-001
  4. GSD 110
    Gearbox type Centering diameter [mm] Hole circle [mm] Max. centering depth [mm] Max. motor shaft length [mm] Screw type Article number
    GSD110 1st. 70 90 9 63 M6 3-G120-070-001
    95 115 9 63 M8 3-G120-095-002
    110 145 9 63 M8 3-G120-110-001
    110 130 9 63 M8 3-G120-110-003
    110 165 9 63 M10 3-G120-110-005
    130 165 9 63 M10 3-G120-130-001
    GSD110 2st. 70 90 8 50 M6 3-G090-070-001
    70 90 8 50 M5 3-G090-070-002
    80 100 8 50 M6 3-G090-080-001
    95 115 8 50 M8 3-G090-095-002
    95 130 8 50 M8 3-G090-095-003
    95 115 13 55 M8 3-G090-095-006
    110 145 8 50 M8 3-G090-110-001
    110 145 22 65 M8 3-G090-110-002
    110 130 8 50 M8 3-G090-110-003
    130 165 8 50 M10 3-G090-130-001
  5. GSD 140
    Gearbox type Centering diameter [mm] Hole circle [mm] Max. centering depth [mm] Max. motor shaft length [mm] Screw type Article number
    GSD140 1st. 114,3 200 8 80 M12 3-G142-114-001
    180 215 8 80 M12 3-G142-180-001
    200 235 8 80 M12 3-G142-200-001
    GSD140 2-st. 70 90 9 63 M6 3-G120-070-001
    95 115 9 63 M8 3-G120-095-002
    110 145 9 63 M8 3-G120-110-001
    110 130 9 63 M8 3-G120-110-003
    110 165 9 63 M10 3-G120-110-005
    130 165 9 63 M10 3-G120-130-001

Reduction sleeves

Reduction sleeve
Reduction sleeve dimensions

Definition of serial number for reduction sleeves

Internal Group No. Type Input hollow shaft diam. D Motor shaft diam. d
3 G 035 028
3 G 011 009
Gearbox
type
Size Stages Internal
diam. D [mm]
Motor shaft diameter d [mm]
6 8 9 10 11 12 12.7 14 16 19 22 24 28 32 35 38 42 48 55
GSD 47 1 / 2 11 (✓)
64 1 19 (✓)
2 14 (✓)
90 1 24 (✓)
2 19 (✓)
110 1 28 (✓) (✓)* (✓)*
2 24 (✓)
140 1 38 (✓)
2 35 (✓)

= Reduction sleeve available;
(
) = no reduction sleeve necessary;
(✓)* = Possible as a specially designed model. Further diameters can also be provided. Please contact us directly.

Additional information

Contact person

email hidden; JavaScript is required

Application examples

Planetary gears overview

Planetary gears G-Series
