Worm Gear Sets A50

Worm Gear Set A50

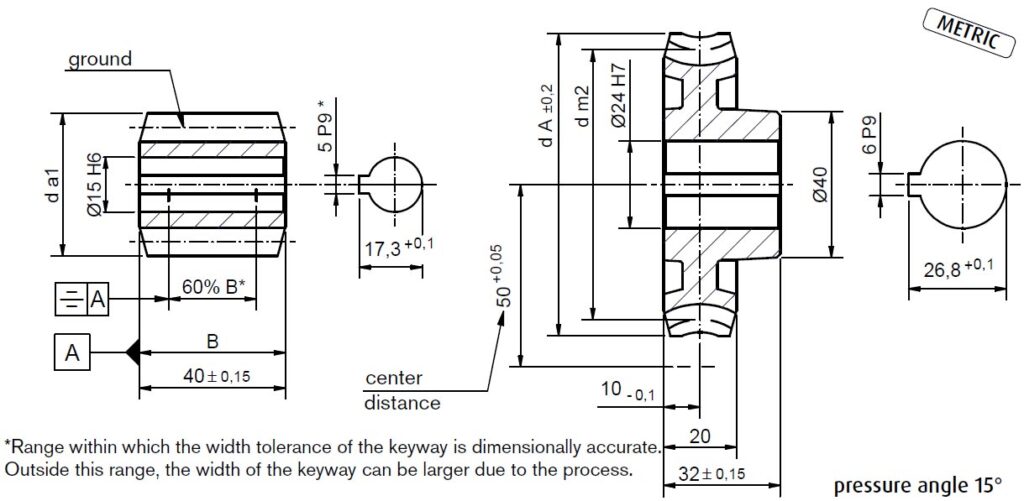

Dimensional drawing Worm Gear Set A50

mm to inch converter

Legende
i = gear ratio da1 = tip diameter (worm) T2 = output torque
γm = Lead angle z2 = No. of teeth MF = mineral grease
mn = module dm2 = pitch diameter (worm gear) MÖ = mineral oil / synthetic grease
z1 = number of threads dA = max. diameter (worm gear) SÖ = synthetic oil
dm1 = pitch diameter (worm)
Axial distance 50 mm i Lead angle m Worm Worm gear T2 [Nm]
Shop Bronze
CAD-Data z1 dm1 da1 z2 dm2 dA MF
A50U4 4.25:1 25°51′ 3.5 4 32.1 39.1 17 67.9 77 34 40.8 51
A50U6 6:1 19°17′ 3.5 3 31.8 38.8 18 68.2 77 52 62.4 78
A50U9 8.66:1 13°52′ 2.5 3 31.29 36.29 26 68.71 77 64.3 77.1 96.4
A50U12 12:1 10°23′ 2.75 2 30.5 36 24 69.5 77 66.4 79.6 99.6
A50U14 13.5:1 9°38′ 2.5 2 29.9 34.9 27 70.1 77 62.8 75.4 94.2
A50U19 19:1 6°17′ 3.5 1 32 39 19 68 77 78.2 93.8 117.3
A50U23 23:1 5°38′ 3 1 30.58 36.58 23 69.42 77 71.1 85.3 106.6
A50U27 27:1 4°40′ 2.5 1 30.73 35.73 27 69.27 77 64.5 77.4 96.7
A50U35 35:1 3°51′ 2 1 29.78 33.78 35 70.22 77 56.7 68 85
A50U46 46:1 2°47′ 1.5 1 30.85 33.85 46 69.15 74 50.6 60.7 75.9
A50U55 55:1 2°19′ 1.25 1 30.9 33.4 55 69.1 74 46.2 55.4 69.3
A50U69 69:1 1°51′ 1 1 30.9 32.9 69 69.1 74 41.4 49.6 62.8

Steel, right-hand threaded worm, case hardened HV 620 – 700.
Worm gear made of CuZn37Mn3Al2PbSi or plastic or laminate 2083 upon request.

The output torque rating (T2) applies to the initial speed of 2800 rpm at the worm (shaft).
The efficiency values (see table in worm gear set catalog) are guidelines. The bearing, lubrication, speed, and installation, in addition to the lead angle, can influence efficiency.

Gears may be combined only with worms of the same axial distance and with the same transmission ratio.
Worms or worm gears from other manufacturers may not be paired with the counterpiece from Framo Morat. It is almost always necessary to adjust the toothing specifications.
All dimensions can be adapted upon request.

Is your desired gear set not available? Request your gear set!
Moderate quantities are usually available from stock, larger quantities are delivered in partial quantities or upon request.
